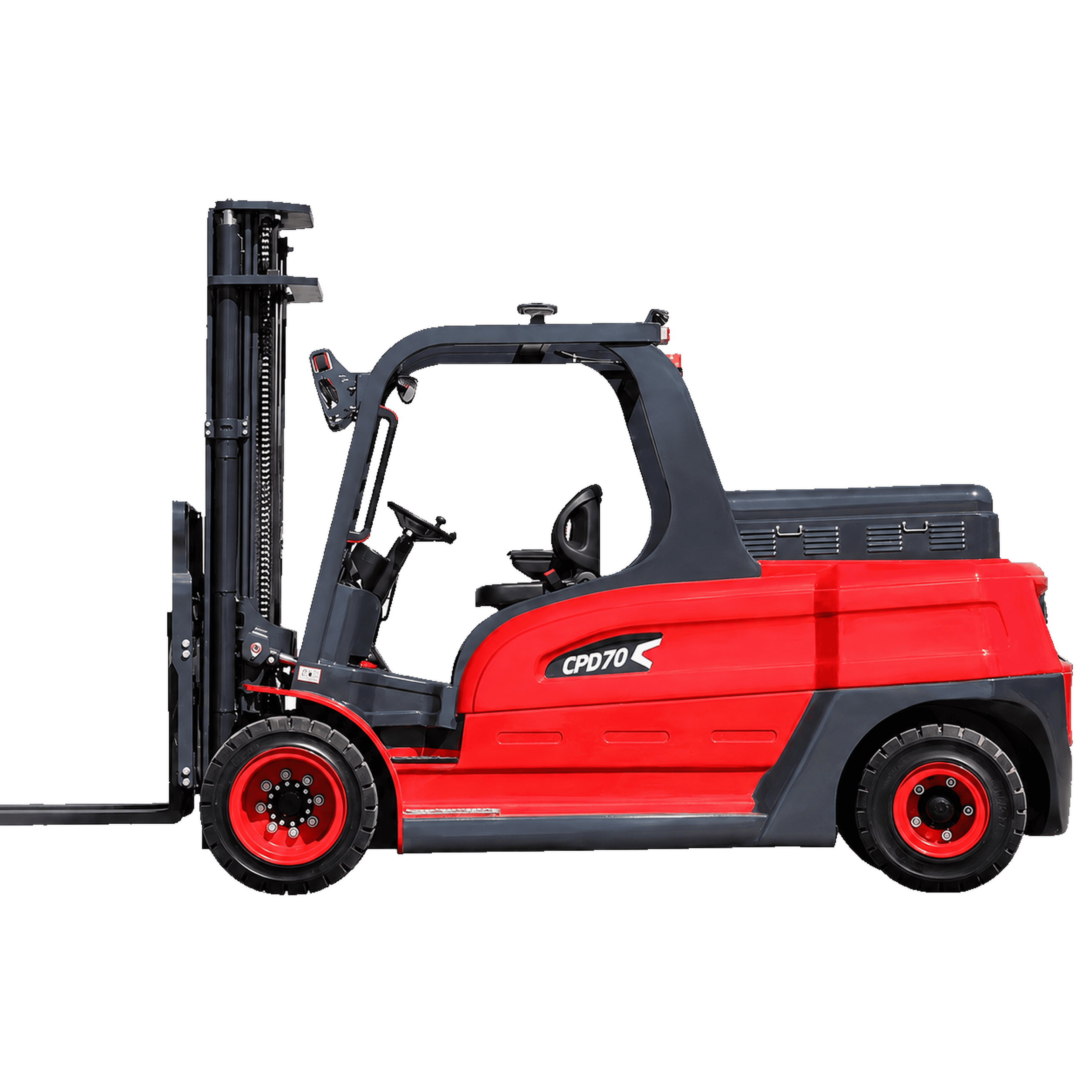

7-Ton Electric Forklift
CPD-70
Anxing Machinery’s CPD70 7-ton electric forklift features AC drive, 14% gradeability, and lift heights up to 6,000 mm for warehouses and factories.
- Rated Capacity
- 7,000 kg
- Load Center
- 500 mm
- Lift Height
- 3,000 mm standard; up to 6,000 mm optional
- Travel Speed
- 13 km/h, laden
Product Videos
Applications
Manufacturing & Production
E-commerce & Retail Fulfillment
Technical Specifications
| Model | CPD70 | Drive type | AC, 4-wheel |
| Rated capacity | 7,000 kg | Load center | 500 mm |
| Mast (standard) | 3,000 mm | Max mast height | Up to 6,000 mm |
| Fork length | 1070mm / 1220mm / 1400mm | Overhead guard height | 2,260 mm |
| Travel speed (loaded) | 13 km/h | Lift speed (loaded) | 250 mm/s |
| Gradeability (loaded) | 14% | Turning radius | 3,200 mm |
| Overall width | 1,860 mm | Tire type | Solid / Pneumatic tires |
| Overall length | 3,600 mm | Color & Logo | Custom color and logo available |
Specifications & Product Documents
Need a current specification sheet or model-specific documents? List the required files and destination market in your inquiry.
Available Certificates & Documents
ISO 9001 (QMS) Certificate
CE Forklift Certificate
ISO 9001 (CNAS) Certificate
7-Ton Electric Forklift FAQs
Where can a 7-ton electric forklift be used?
A 7-ton electric forklift is suitable for factories, warehouses, production facilities, distribution centers, and loading areas that handle heavy palletized loads. With the appropriate tires and operating configuration, it can support both indoor work and outdoor operation on firm, suitable surfaces.
How much can a 7-ton electric forklift safely lift?
A 7-ton electric forklift has a rated capacity of 7,000 kg at a 500 mm load center. Actual safe capacity may decrease at greater lift heights or when using longer forks, attachments, or loads with a different center of gravity. Always follow the forklift data plate and residual capacity chart.
How high can a 7-ton electric forklift lift?
Our 7-ton electric forklift comes with a standard lift height of 3,000 mm and can be configured for heights up to 6,000 mm. Select the mast according to rack height, doorway clearance, ceiling height, load dimensions, and required residual capacity.
How long does an electric forklift battery last?
Battery runtime depends on the selected battery type, voltage and capacity, load weight, travel distance, operating intensity, temperature, and charging conditions. At Anxing Machinery, we can match the forklift, battery, and charger configuration to the required working hours and shift schedule.
How much does a 7-ton electric forklift cost?
The price of a 7-ton electric forklift depends on its lift height, mast configuration, battery and charger, fork length, tires, attachments, customization requirements, and shipping destination. Contact Anxing Machinery with your application details for an accurate quotation and suitable configuration.
