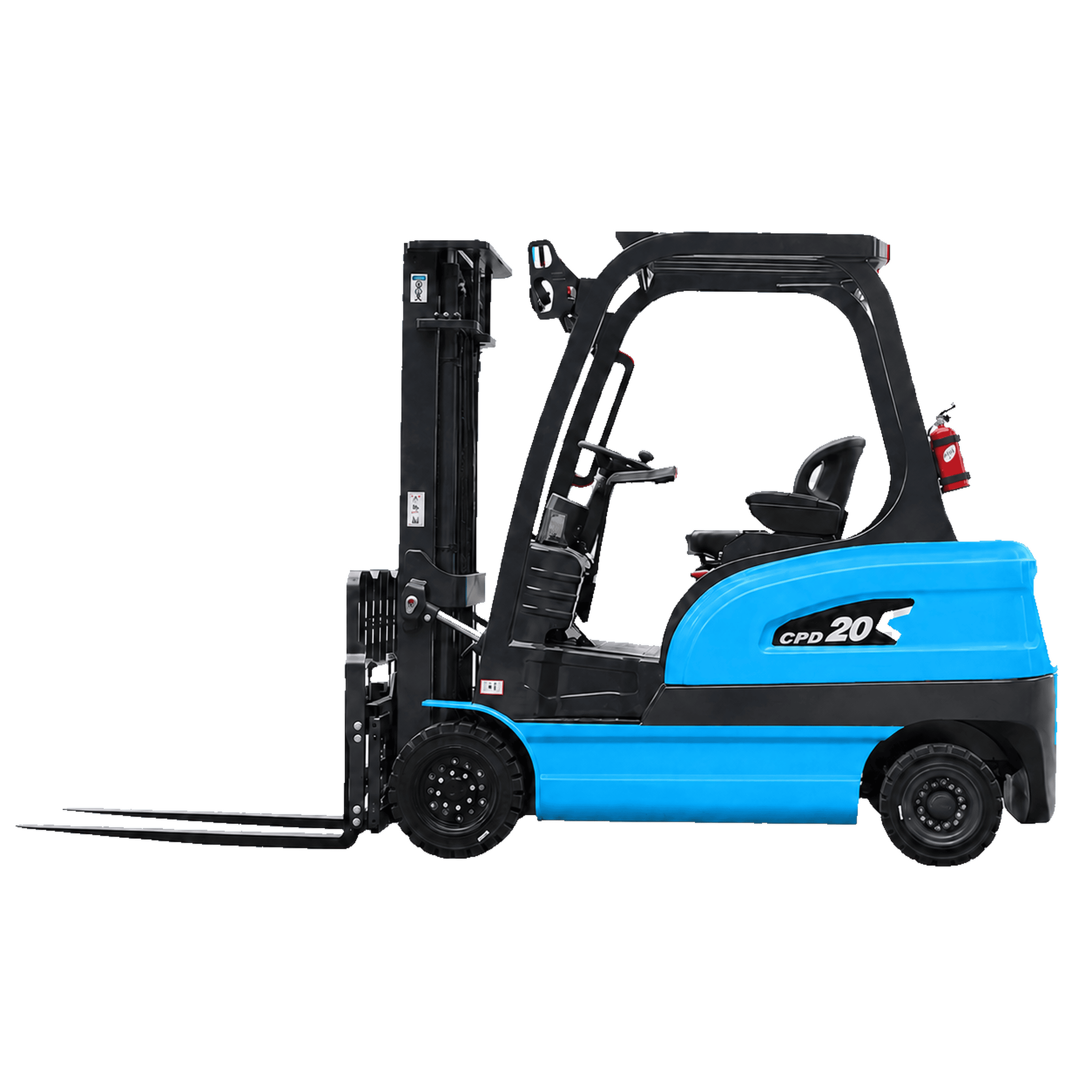

2-Ton Electric Forklift

CPD-20

Anxing Machinery’s CPD20 2-ton electric forklift features AC drive, 14% gradeability, and lift heights up to 6,000 mm for warehouses and factories.

Rated Capacity
2,000 kg
Load Center
500 mm
Lift Height
3,000 mm standard; up to 6,000 mm optional
Travel Speed
10 km/h, laden

Product Videos

Applications

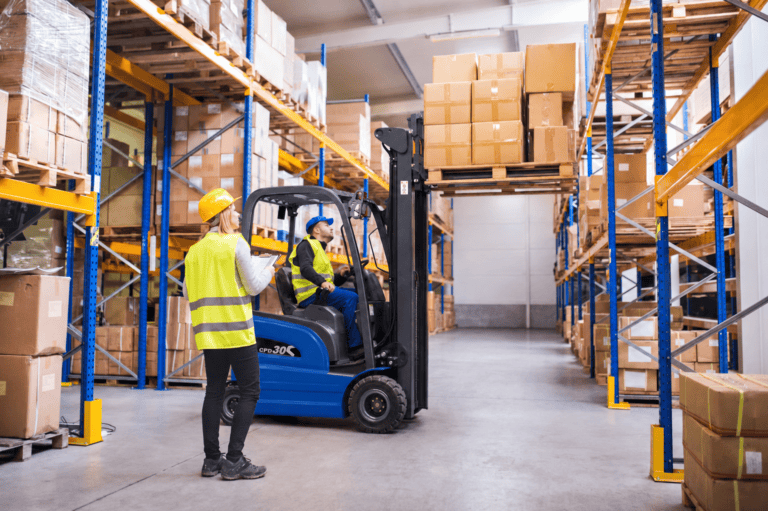

Warehousing & Distribution

Warehousing & Distribution

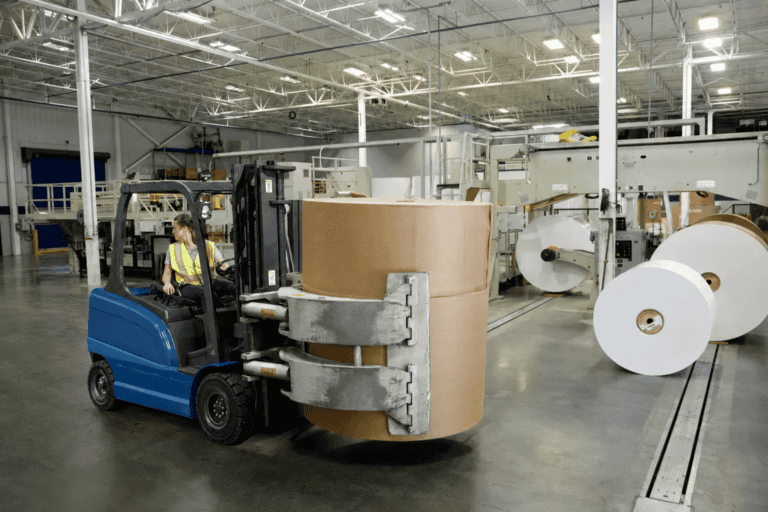

Manufacturing & Production

Manufacturing & Production

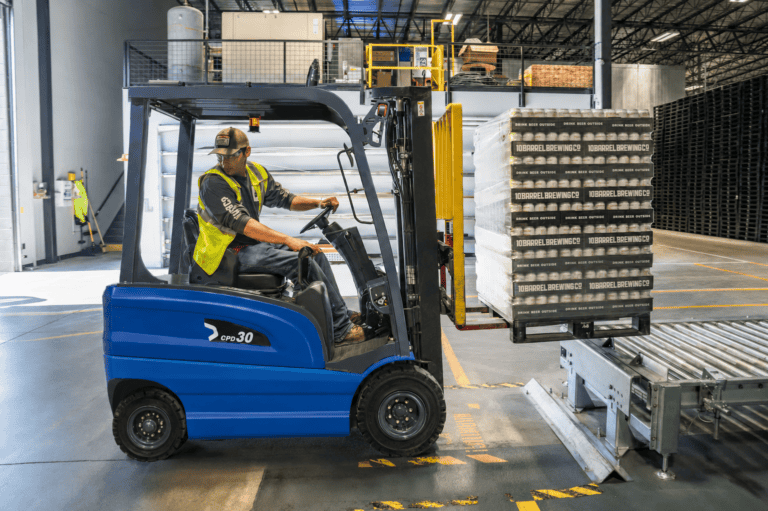

E-commerce & Retail Fulfillment

E-commerce & Retail Fulfillment

Technical Specifications

Model
CPD20
Drive type
AC, 4-wheel
Rated capacity
2,000 kg
Load center
500 mm
Mast (standard)
3,000 mm
Max mast height
Up to 6,000 mm
Fork length
1070mm / 1220mm / 1400mm
Overhead guard height
2,050 mm
Travel speed (loaded)
10 km/h
Lift speed (loaded)
240 mm/s
Gradeability (loaded)
14%
Turning radius
2,230 mm
Overall width
1,100 mm
Tire type
Solid / Pneumatic tires
Overall length
3,410 mm
Color & Logo
Custom color and logo available
Blue Anxing electric forklift operating in a warehouse.Blue Anxing electric forklift operating in a warehouse.

Request an Equipment Quote

Tell us your application, preferred model, configuration, quantity, and destination. Our team will review your requirements before preparing the quotation.

Google reCaptcha: Invalid site key.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

We use your contact information only to respond to your equipment inquiry.

Available Certificates & Documents

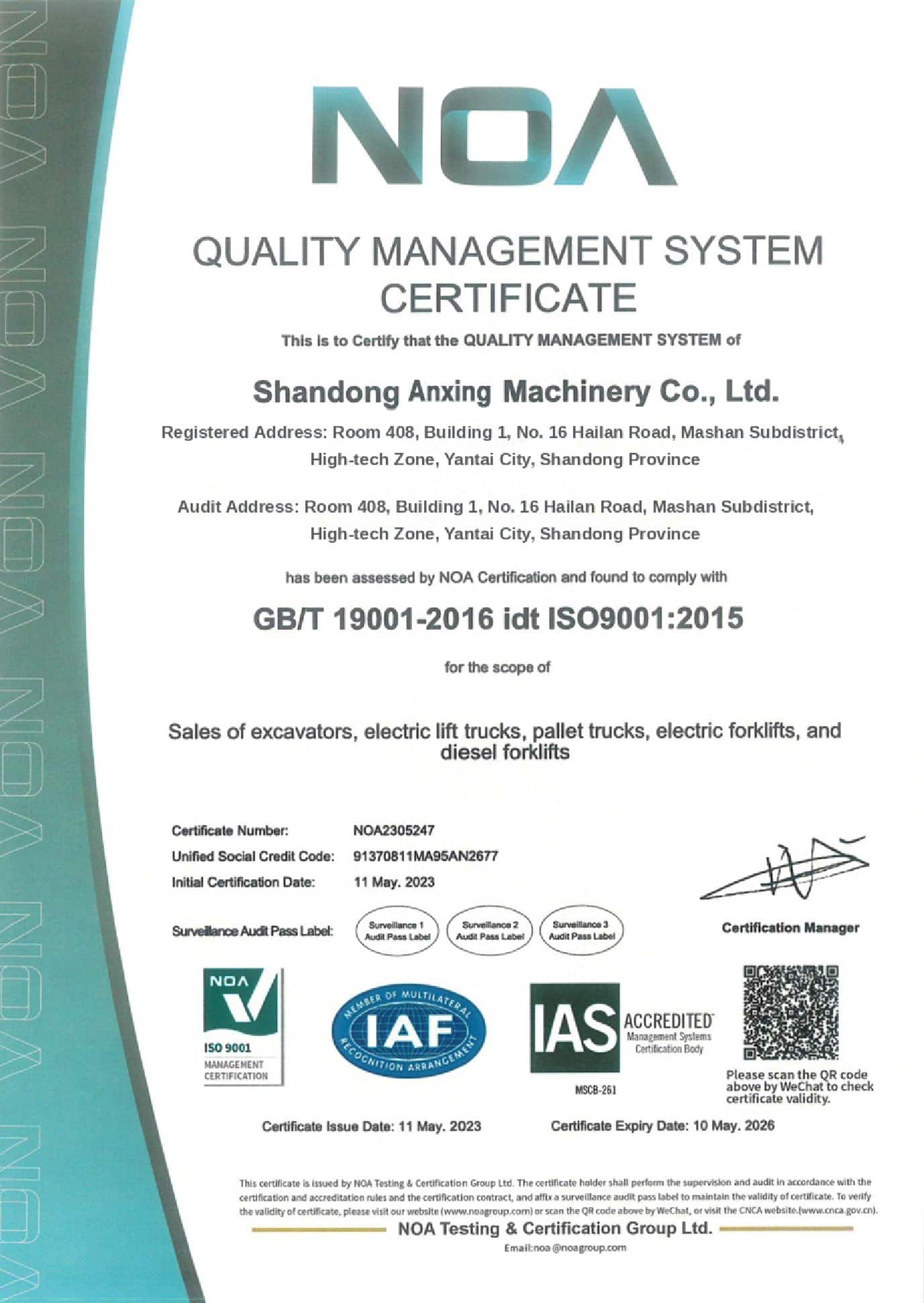

ISO 9001 (QMS) Certificate

ISO 9001 (QMS) Certificate

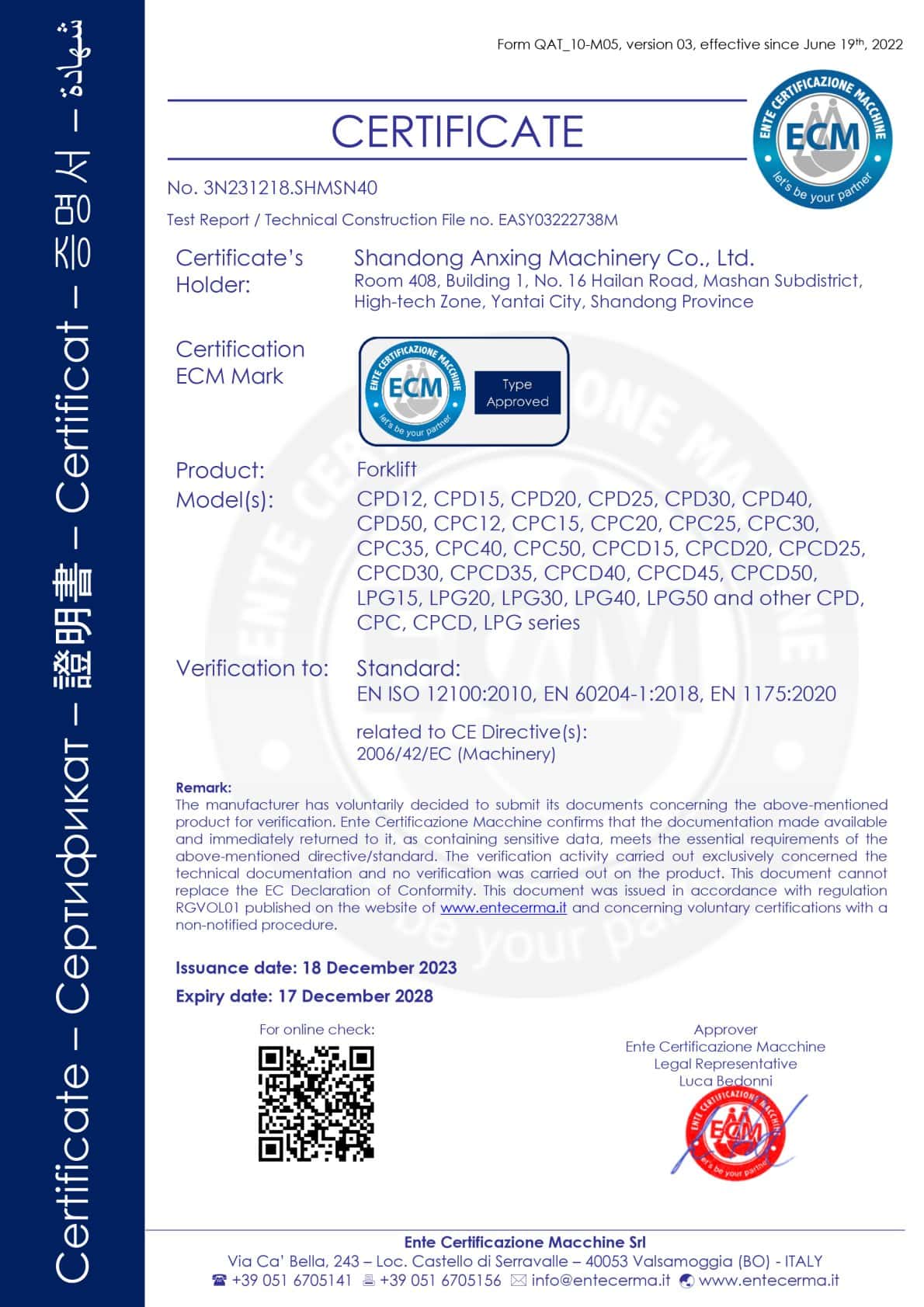

CE Forklift Certificate

CE Forklift Certificate

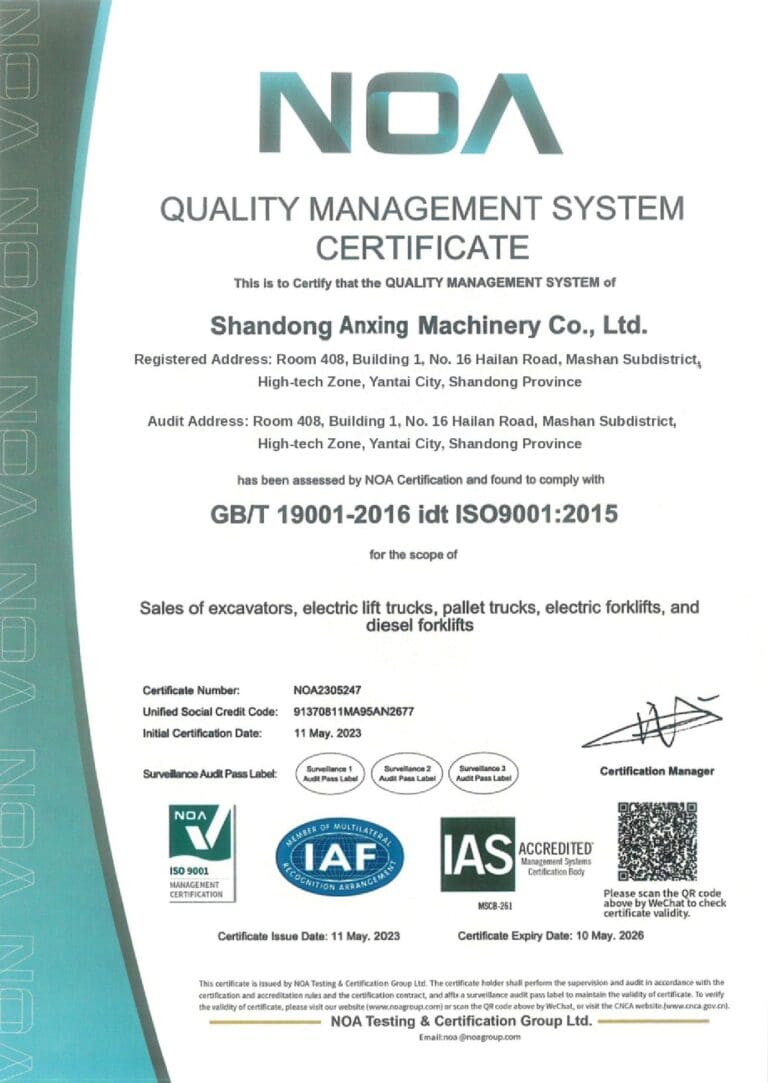

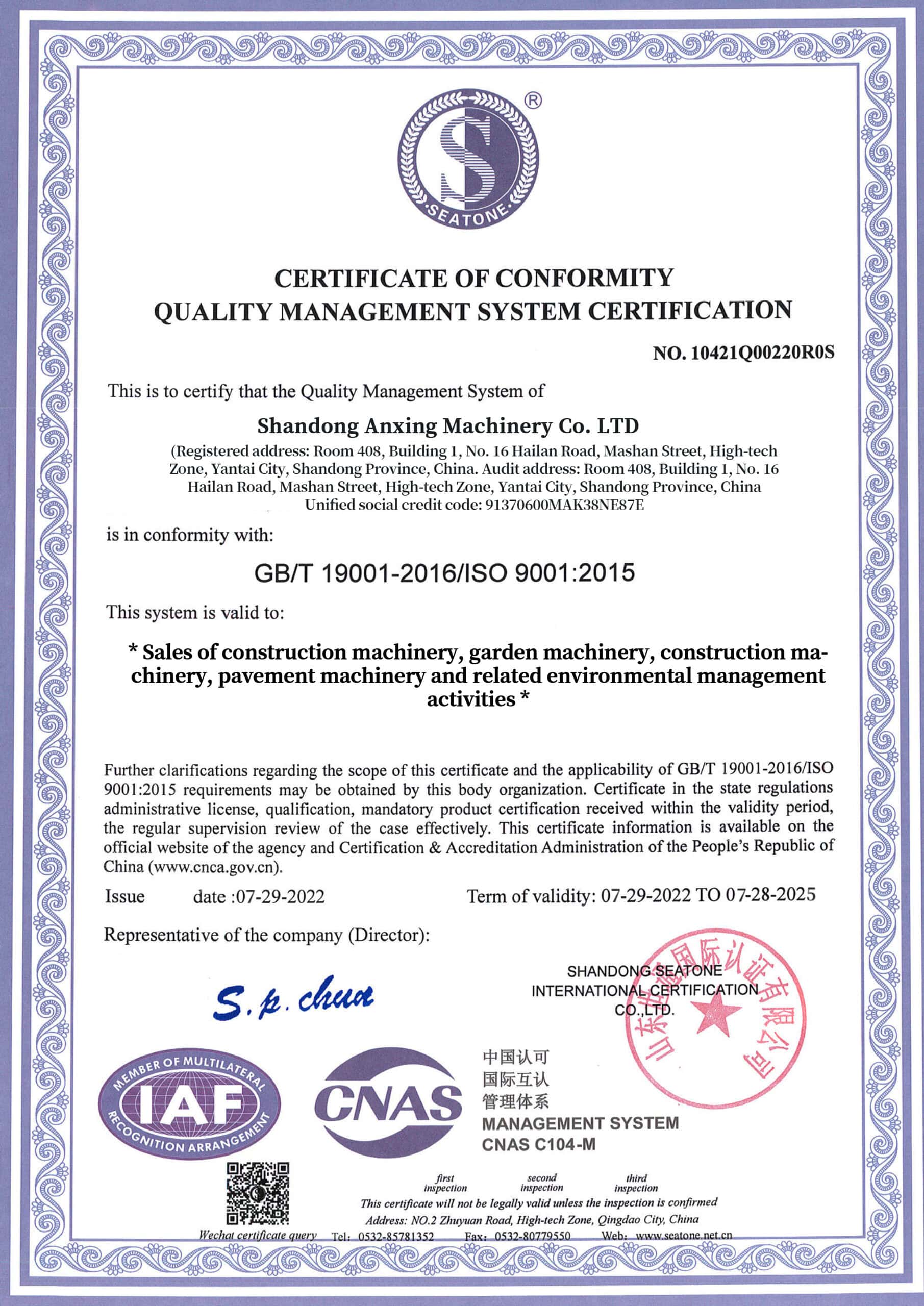

ISO 9001 (CNAS) Certificate

ISO 9001 (CNAS) Certificate

2-Ton Electric Forklift FAQs

Where can a 2-ton electric forklift be used?

A 2-ton electric forklift is suitable for warehouses, factories, distribution centers, and loading areas. Its compact four-wheel design supports routine indoor material handling and confined-space operation. With the appropriate tires and operating configuration, it can also handle light outdoor work on firm, level surfaces.

How much can a 2-ton electric forklift safely lift?

A 2-ton electric forklift has a rated capacity of 2,000 kg at a 500 mm load center. Actual safe capacity may decrease at greater lift heights or when using longer forks, attachments, or loads with a different center of gravity. Always follow the forklift data plate and residual capacity chart.

How high can a 2-ton electric forklift lift?

Our 2-ton electric forklift comes with a standard lift height of 3,000 mm and can be configured for heights up to 6,000 mm. The appropriate mast should be selected according to rack height, doorway clearance, ceiling height, load dimensions, and required residual capacity.

How long does an electric forklift battery last?

Battery runtime depends on the selected battery type, voltage and capacity, load weight, travel distance, operating intensity, temperature, and charging conditions. At Anxing Machinery, we can match the forklift, battery, and charger configuration to the required working hours and shift schedule.

How much does a 2-ton electric forklift cost?

The price of a 2-ton electric forklift depends on its lift height, mast configuration, battery and charger, fork length, tires, attachments, customization requirements, and shipping destination. Contact Anxing Machinery with your application details for an accurate quotation and suitable configuration.
