CDD-15-30
1.5–2 Ton Walkie Electric Pallet Stacker, 3.5 m Lift
CDD-1.5T-2T
Anxing 1.5–2 ton walkie electric pallet stackers provide a 3.5 m lift and compact control for warehouse pallet handling.
Technical Specifications
| Specification | Unit | Value |
|---|---|---|
| Rated Load Capacity | kg | 1,500–2,000, configurable |
| Operating Type | — | Walkie |
| Lift Height | mm | 3,500 |
| Drive Motor Power | kW | 1.5 |
| Lift Motor Power | kW | 2.2 |
| Turning Radius | mm | 1,688 |
| Ground Clearance | mm | 90 |
| Mast Configuration | — | Single-Chain Lift |
| Fork Dimensions | mm | 50 × 160 × 1,150–1,200, customizable |
| Overall Length | mm | 1,850–1,970, depending on configuration |
| Overall Width | mm | 790–850, depending on configuration |
| Overall Height | mm | 1,580 |
| Operating Weight | kg | 550–590, depending on configuration |
| Custom Configuration | — | Load capacity, fork length and overall configuration can be matched to the pallet-handling application |
Specifications & Product Documents
Need a current specification sheet or model-specific documents? List the required files and destination market in your inquiry.
Compact Walkie Electric Pallet Stacker for Warehouse Handling
The Anxing CDD-1.5T-2T is a walkie electric pallet stacker designed for pallet transport, rack replenishment and short-distance stacking in warehouses, workshops and production storage areas. The operator walks behind the machine rather than riding on a platform, helping keep the overall truck compact for applications where travel distances are relatively short and maneuvering space is limited.
Available with rated capacities of 1,500 kg and 2,000 kg and a 3,500 mm lift height, this model is suitable for buyers who need more lifting capability than a powered pallet truck but do not require the size or travel performance of a counterbalanced forklift.
Typical applications include:
- Pallet movement between receiving and storage areas
- Rack loading and replenishment
- Short-distance warehouse pallet transport
- Production-line material supply
- Finished-goods storage
- Compact stockrooms and distribution areas
- Operations upgrading from manual pallet handling to powered lifting
The correct configuration should always be selected around the actual pallet, load, storage height and warehouse route rather than rated capacity alone.
When Does a Walkie Stacker Make Sense?
A walkie stacker is most practical when pallet travel is relatively short and the operator needs to combine transport with vertical stacking.
Compared with a stand-on stacker, the walk-behind operating layout avoids the need for an operator platform and can be a practical choice for compact storage areas, intermittent pallet movements and shorter warehouse routes. For operations involving frequent long-distance travel or high daily throughput, a platform or stand-on electric stacker may be more suitable.
Compared with a counterbalanced electric forklift, a walkie pallet stacker is more compact and focused on palletized warehouse work. A forklift may be the better choice when the operation requires faster travel, frequent dock work, non-palletized loads or more flexible load handling.
The decision should therefore be based on the complete workflow:
- Maximum pallet weight
- Travel distance per cycle
- Number of pallet movements per shift
- Required stacking height
- Available aisle and turning space
- Pallet underside and fork-entry arrangement
- Floor condition
- Required productivity
Match the 1.5 Ton or 2 Ton Configuration to the Actual Load
This electric walkie stacker is available with 1,500 kg and 2,000 kg rated-capacity configurations. The higher nominal capacity should not automatically be selected simply because it offers a larger number.
Start with the heaviest pallet the machine will actually handle, then confirm its dimensions, load center and required stacking height. Capacity available at height can differ from the nominal rating, particularly when the load center, fork configuration or lifting requirement changes.
For operations regularly handling loads close to the selected machine’s rated limit, provide Anxing with the maximum load rather than the average pallet weight. This allows the final configuration to be checked before quotation.
The 3,500 mm lift height makes the CDD-1.5T-2T suitable for many low- and medium-level pallet storage applications, but rack beam height and available clearance should be measured before ordering.
Check Pallet and Aisle Compatibility Before Ordering
Choosing a walkie electric stacker by capacity and lift height alone can result in a machine that does not fit the actual pallet or warehouse route.
The CDD-1.5T-2T has an overall width of approximately 790–850 mm depending on configuration and a listed turning radius of 1,688 mm. These dimensions help make the machine compact, but they do not by themselves determine the minimum working aisle.
Actual aisle requirements also depend on:
- Pallet length and width
- Fork-entry direction
- Required turning angle
- Rack position
- Clearance at aisle intersections
- Load overhang
- Operator maneuvering allowance
Pallet construction should be checked at the same time. Fork length can be configured around the application, but bottom boards, fork pockets and pallet entry dimensions can affect whether a particular pallet works correctly with the stacker.
Before ordering, send Anxing the pallet dimensions or pallet drawing together with the narrowest working aisle. We can review the proposed stacker configuration against the application.
Before Requesting a Quote
For faster model confirmation, provide the following information with your inquiry:
- Maximum pallet weight
- Pallet length, width and fork-entry direction
- Required lift height
- Highest rack position
- Narrowest working aisle
- Approximate travel distance per cycle
- Daily operating hours or pallet movements
- Floor and ramp conditions
- Required quantity
- Destination country and local charging voltage
These details allow the CDD-1.5T-2T configuration to be reviewed around the real warehouse application rather than quoting only from nominal capacity.
Available Certificates & Documents
ISO 9001 (QMS) Certificate

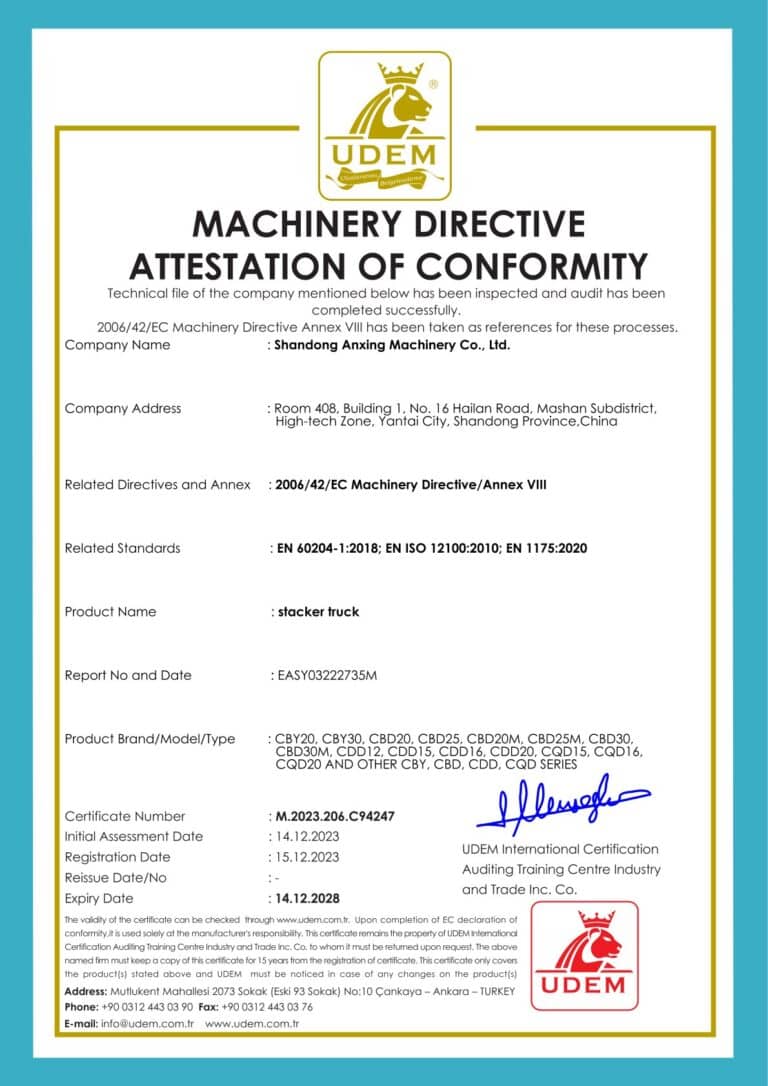

CE Electric Stacker Certificate
ISO 9001 (CNAS) Certificate
1.5–2 Ton Walkie Electric Pallet Stacker, 3.5 m Lift FAQs
What is a walkie electric pallet stacker?
A walkie electric pallet stacker is a powered warehouse truck that allows the operator to walk behind the machine while it transports and lifts pallets. It combines powered travel and powered lifting in a compact format suited to short-distance pallet handling and stacking.
Is a walkie electric stacker the same as a walk-behind pallet stacker?
These terms are often used to describe the same operating concept: the operator controls the stacker while walking behind it rather than riding on a platform. Product specifications still vary considerably, so capacity, lift height, fork layout and dimensions should be compared rather than relying only on the product name.
Walkie vs. stand-on electric pallet stacker: which should I choose?
A walkie stacker is generally better suited to shorter travel distances, compact work areas and moderate handling frequency. A stand-on stacker becomes more attractive when operators travel farther or move pallets more frequently because the operator can ride with the machine. The better option depends on route length, throughput, aisle dimensions and required capacity.
How much aisle width does a walkie electric pallet stacker need?
There is no single aisle-width figure that applies to every operation. Turning radius is only one part of the calculation. Pallet length, load orientation, rack layout and required maneuvering clearance must also be considered. Send the pallet dimensions and narrowest aisle to Anxing so the application can be reviewed before ordering.
Can this walkie pallet stacker handle Euro pallets or other standard pallets?
Compatibility depends on the pallet's dimensions, fork-entry direction and underside construction. Standard pallet dimensions alone do not guarantee compatibility. Buyers should provide the pallet specification or drawing so fork length, spacing and support-leg clearance can be checked.
Can a walkie stacker handle closed-bottom pallets?
Not every support-leg stacker is compatible with every closed-bottom pallet. Bottom-board arrangement and fork/support-leg geometry must be checked before purchase. If closed-bottom or non-standard pallets are used, send a pallet drawing or clear underside photos with your inquiry.
Is a 3.5 m walkie pallet stacker suitable for warehouse racking?
It can be suitable when the required pallet placement height is within the machine's confirmed working range. Buyers should provide the highest rack beam or pallet position, pallet height, load weight and required clearance so both lift height and usable capacity can be checked.
Is a walkie electric pallet stacker suitable for long-distance warehouse travel?
Walkie stackers are primarily suited to relatively short pallet-transfer routes. If operators repeatedly travel long distances or complete a high number of cycles per shift, a stand-on stacker or another powered material-handling truck may provide better productivity and operator efficiency.
What should I compare when buying a walkie electric pallet stacker?
Do not compare price and rated capacity alone. Check rated and residual capacity, lift height, pallet compatibility, fork dimensions, turning requirements, overall dimensions, duty cycle, floor conditions, charging requirements, service support and the exact supplied configuration.
Can Anxing customize the 1.5–2 ton walkie electric pallet stacker?
Configuration options can be reviewed according to the application. Provide your required capacity, pallet dimensions, fork requirements and operating conditions so available options can be confirmed in the quotation.
