3.5–5 Ton Mini Excavators
AX-35-50
At Anxing Machinery, our 3.5–5 ton mini excavators deliver added digging capacity for construction and site preparation.
Especificaciones técnicas
| Especificaciones | Unidad | Valor |
|---|---|---|
| Peso operativo | kg | 3,500–5,000, configurable |
| Opciones de motor | — | Kubota D902 / D1105 / D1703 or Changchai 390 |
| Rated Power | kW | 14–20, depending on engine configuration |
| Bucket Capacity | m³ | 0.05–0.11, configurable |
| Velocidad de desplazamiento | km/h | 1.5–4.5, depending on configuration |
| Swing Speed | r/min | 9–12 |
| Longitud total | mm | 3,350–4,915 |
| Ancho total | mm | 1,350–1,720 |
| Altura total | mm | 2,300–2,585 |
| Track Width | mm | 230–300 |
| Distancia al suelo | mm | 300–397, depending on configuration |
| Maximum Digging Depth | mm | 2,150–3,530 |
| Maximum Digging Height | mm | 2,757–4,800 |
| Maximum Dumping Height | mm | 2,399–3,490 |
| Maximum Digging Radius | mm | Up to 5,445, depending on digging geometry |
| Minimum Swing Radius | mm | 1,350 reference configuration |
| Boom Swing Angle | ° | Left 45 / Right 55, available by configuration |
| Upperstructure Rotation | ° | 360, available by configuration |
| Configuración personalizada | — | Operating weight, engine, bucket capacity, tracks and attachments can be matched to the application |
Especificaciones y documentos del producto
¿Necesitas una hoja de especificaciones actualizada o documentos específicos de un modelo? Indica en tu consulta los archivos que necesitas y el mercado de destino.
Certificados y documentos disponibles
Certificado ISO 9001 (Sistema de Gestión de Calidad)

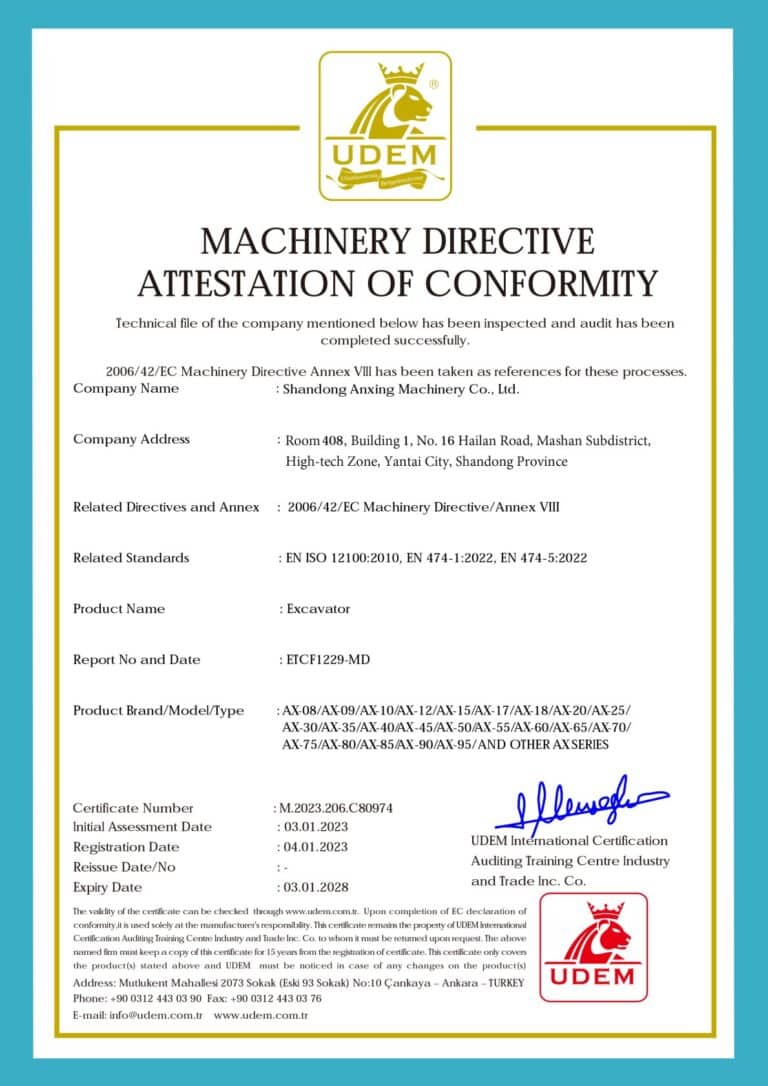

CE Mini Excavator Certificate
Certificado ISO 9001 (CNAS)
3.5–5 Ton Mini Excavators FAQs
Which 3.5–5 ton mini excavator model should I choose?
The AX-35, AX-40 and AX-50 have operating weights of 3,500, 4,000 and 5,000 kg respectively. Choose according to the required digging depth, bucket capacity, site access and transport weight.
How deep can these excavators dig?
The AX-35 reaches 2,150 mm. AX-40 configurations provide maximum digging depths from 2,724 to 3,530 mm, while the AX-50 provides depths from 2,754 to 3,208 mm.
What engine options are available?
The AX-35 uses a Kubota D902 engine. The AX-40 is available with a Kubota D1105 or Changchai 390, while the AX-50 uses a Kubota D1703 engine.
What maneuvering features are available?
AX-40 and AX-50 configurations provide 360° upperstructure rotation and boom swing angles of 45° left and 55° right. Overall width ranges from 1,350 mm on the AX-35 to 1,720 mm on selected AX-50 configurations.
What details should I provide for a quotation?
Please send the required operating weight, digging depth, bucket size, site access, ground conditions, preferred engine, attachments, quantity and destination. Anxing Machinery will recommend the appropriate AX-35, AX-40 or AX-50 configuration.
